Medium Speed Paper Cup Forming Machine MG-Z12

Paper cup forming machine, new type coffee cup making machine, disposable cup forming machine, medium speed paper glass machine, paper cup manufacturing machine, paper cup machine

MG-Z12 is a kind of multi-station automatic cup forming machine and equipped with a number of functional devices. With the assistance of this machine, workers save a great deal of time and energy, without compromising product quality and output. Main processing procedures it carries out are paper feeding, sealing, bottom cutting, heating, knurling, etc.

Attractive Advantages
1. The gear transmission is much more stable than chain transmission.
2. An automatic lubricating system guarantees smooth operation and long lifespan.

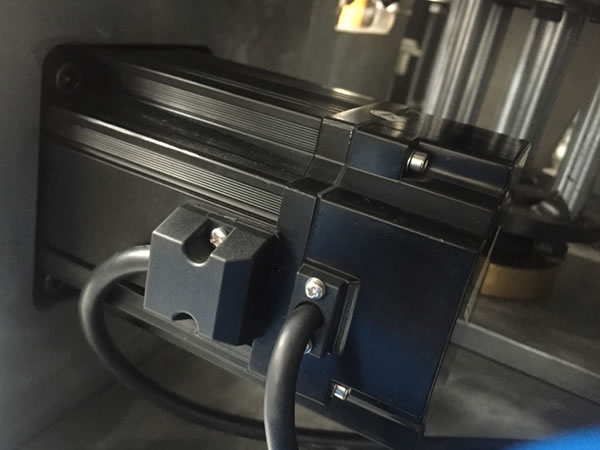

3. A servo motor is used for feeding paper bottoms, time-saving and highly efficient.
4. The ultrasonic sealing technique provides 10,000 times of vibration every second, leading to tightly sealed drink cups.
5. Automatic cup collecting device is available to customers.

Major Configurations of Paper Cup Former
This paper cup making equipment has been well improved on producing capacity only with an increase in electricity of 2.2KW.

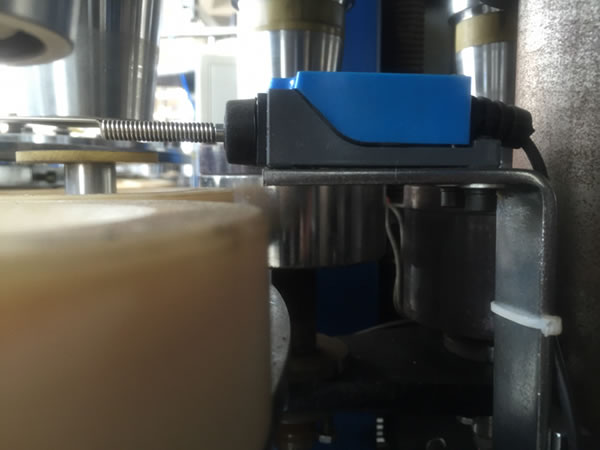

  • The effective servo transfer system controls the distance between papers to 0.1mm, decreasing the consumption of raw materials. Matched with a photoelectric sensor, the system sends cup bottoms for sealing only when a cup body is detected, avoiding unnecessary paper waste.

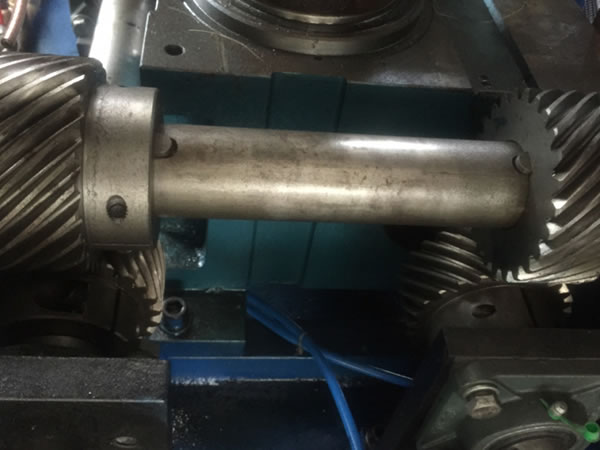

  • When it comes to transmission, this paper converting machine utilizes vertical-axis gear in order for stable performance, low noise and long lifespan.

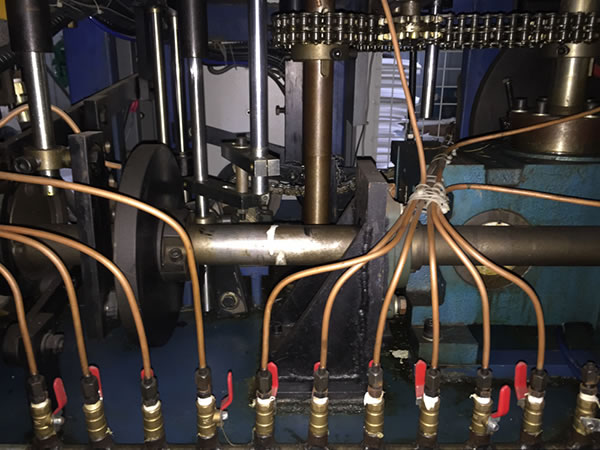

  • An automatic lubricating system is implemented to ensure uninterruptible operation.

  • This patented knurling device is superior to commonly-used knurling machines, thanks to its uniform knurling effect, clear pattern and low leakage.

  • This product is also outfitted with automatic bottom adding machine, which decreases a lot of labor cost.

  • A photoelectric sensor is used to inspect malfunction and fault. It will automatically set off an alarm and turn off the cup former when error is detected. Tested parts include cup wall, bottom, mouth, etc. the sensor ensures no potential harm to machine, leading to a long life span.

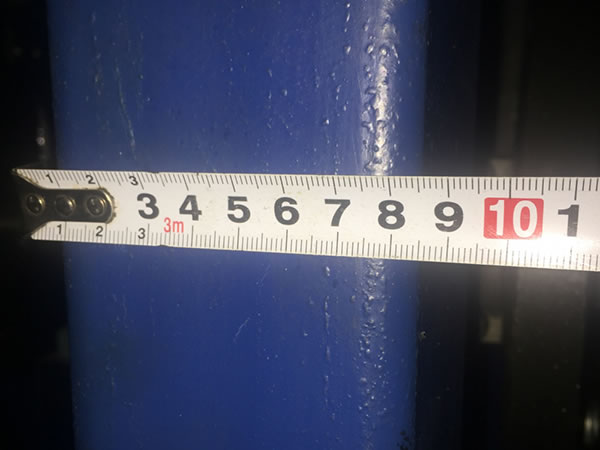

  • The machine is produced from thick iron plate, square steel and angle iron.
Main Technical Parameter
Cup capacity 2-12OZ
Paper material 140-350GSM
Production capacity 60-65pcs/min
Total power 7KW
Air consumption Air pressure: 0.4Mpa, Air input: 0.6m3/min
Machine weight 2800KG
Size 2650mm*1200mm*1700mm
Video link https://www.youtube.com/watch?v=6DtywHf0Caw&nohtml5=False
Production time 40days

Maintenance
Maintenance of MG-Z12 medium speed paper cup forming machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Package
All machines are packaged by wooden case.

After-sale Service
1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-Z12 medium speed paper cup forming machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty
1. We offer a one-year warranty for the MG-Z12 Automatic High Speed Paper Cup Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.
